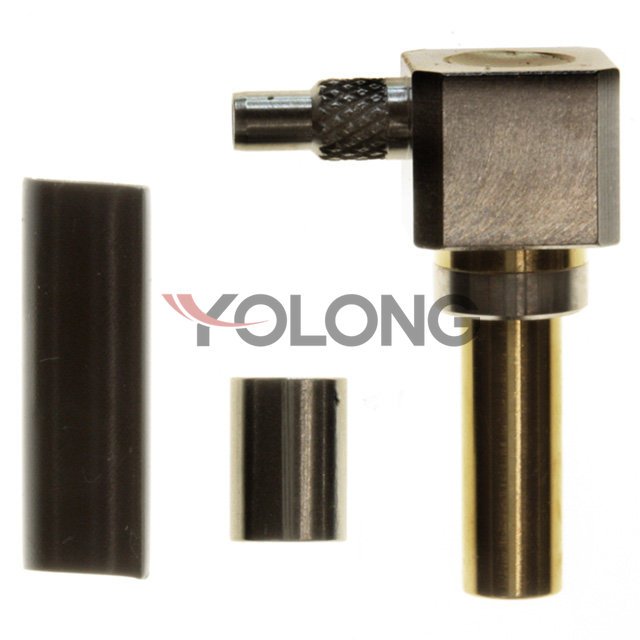

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MS-156-C(LP)-1
| Part Number | MS-156-C(LP)-1 |
|---|---|
| Manufacturer | Yolong |
| DESCRIPTION | RF CONNECTOR COAX SWITCH PLUG R/A 50 OHM |
| In-stock | 8 |
request a quote
MS-156-C(LP)-1 Description
| Type | Description |
|---|---|
| Series | MS-156C |
| Equivalent Quality | Hirose |
| Packaging | Bag |
| Connector Type | Plug, Male Pin |
| Connector Style | Coaxial Switch – 4mm Plug Dia |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | – |
| Cable Group | 1.5D-HQEW |
| Fastening Type | Snap-On |
| Frequency – Max | 6 GHz |
| Number of Ports | 1 |
| Features | Internal Switch |
| Housing Color | Gold |
| Ingress Protection | – |
| Center Contact Material | Beryllium Copper |
